Automate your sealing process with UniSeal.
Optimize your sealing process for cardboard-blister-cardboard and cardboard-blister with the fully automatic sealing machine UniSeal by Tommy Nielsen. Designed for eased operation, UniSeal automates the sealing process, saving you time and effort when higher output is required.
Interested in optimizing your sealing process?
![Tommynielsen Tooling Profile 8896](/media/3uukcv4x/tommynielsen_tooling_profile_8896.jpg?width=500&height=500&quality=80&v=1dab72ea0d149a0)
Easy operation
UniSeal automates the sealing process for cardboard/blister or cardboard/blister/cardboard and is easily integrated into your production line. With flexible options for automatic or manual card loading, Uniseal adapts to your unique requirements, ensuring a smooth and efficient operation.
“UniSeal offers convenience and reliability backed by Tommy Nielsen’s expertise in medical packaging technology.”
Flexible options for easy sealing.
With UniSeal you have the freedom to choose between automatic and manual carboard loading, tailoring the machine to match your workflow preferences. Whether you prefer automatic placement of top cardboards or manual loading, UniSeal ensures a secure and reliable sealing process every time.

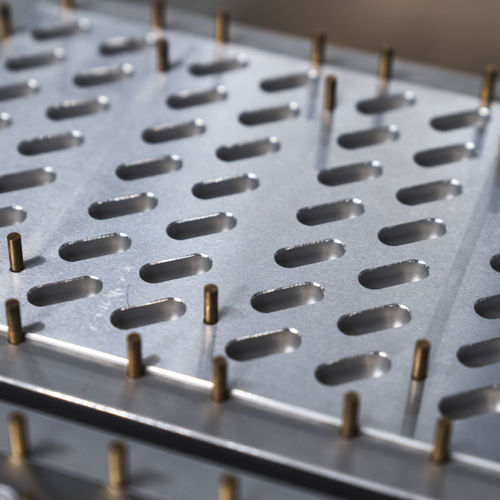

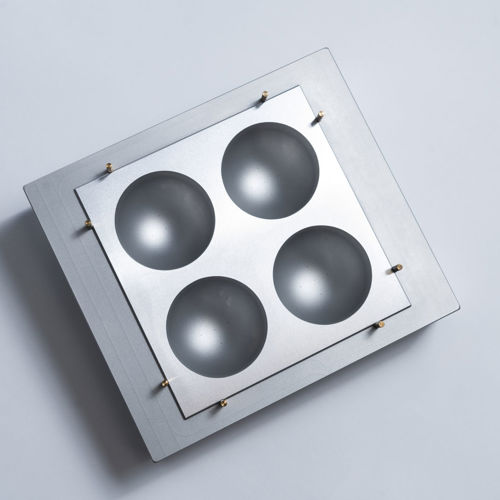

The machine features an automatic cardboard loader that accurately positions the pre-printed and pre-cut cardboards onto the die palettes connected to a conveyer system. For manual placing, the loader can be deactivated. Simply place the filled blister onto the pallet with the top cardboard, and the bottom cardboards will be automatically loaded onto the top layer. The packages are sealed at designated sealing station and promptly unloaded from the pallets in an automated process. With a capacity of up to over 3000 packs per hour, depending on the size and shape of the items packed, it provides an efficient and reliable solution for your packaging sealing needs.
![Tommynielsen Tooling Profile 9065](/media/zmkninf3/tommynielsen_tooling_profile_9065.jpg?width=500&height=500&quality=80&v=1dab72ea11f90b0)
Your advantages
Optimized workflow
with automatic sealing functionality
Customized carton loading options
to match your needs
Enhanced reliability and efficiency
throughout your sealing process
Benefit from Tommy Nielsen’s expertise
and reputation in medical packaging technology
Flexible choice
between automatic and manual carton loading for added versatility
![Tommynielsen Universal 501FSX8736](/media/tl5bjuey/tommynielsen_universal_501fsx8736.jpg?width=500&height=500&quality=80&v=1dab72e8120a5b0)
UNISEAL 600 specifications
Function: | Sealing, automatic |
---|---|
Products: | Tablets and medical devices |
Machine width (mm): | 1092 |
Machine length (mm): | 5339 |
Machine height (mm): | 1690 |
Electrical supply: | 3 x 400/230 V 50Hz |
Air supply: | 5-7 bar |
Environmental noise level: | Less than 75 dB |
Temperature, max.: | 200°C |
Weight (kg): | Approx. 1600 |
The UniSeal can be delivered with other data.
